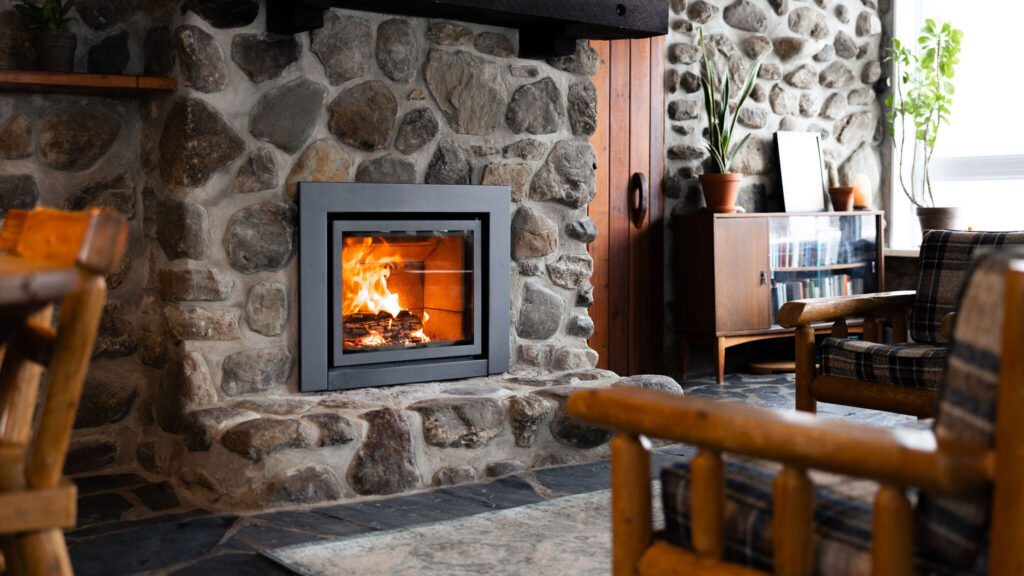

Stûv 16-in & Z

Wood fireplaces and inserts

Clean lines. Amazing performance.

The Stûv 16 line showcases the beauty of flames through its refined design. These models of wood fireplaces and inserts have a large opening for maximum heat distribution.

Fire in its purest form with automatic control

The combustion techniques of the Stûv 16 allows to optimize their efficiency while eliminating their environmental impact. Equipped with SBR (single burn rate) automatic control, these models area easy to use: no air register to manipulate all you need to do is light the logs and enjoy the spectacular fire.

Clean lines and elegance

With their perfectly straight lines, Stûv 16 fireplaces and inserts are timeless and suitable for every style.

A breathtaking view of the fire

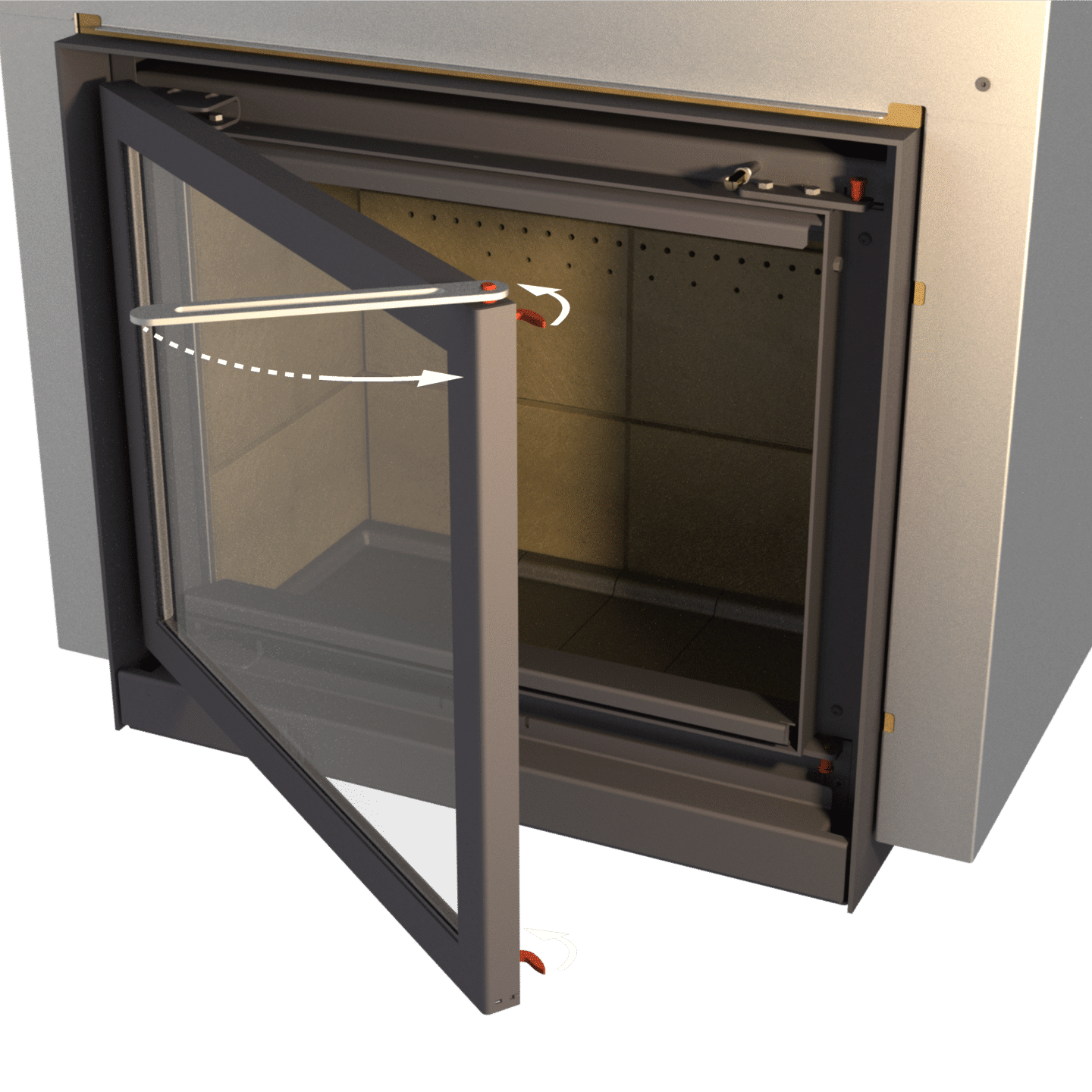

Handles are not visible on the Stûv 16. A removable key serves as a tool to open the hinged door.

Insert and zero clearance

Insert or zero clearance wood fireplaces, Stûv 16 offers you a multitude of possibilities to enhance your décor.

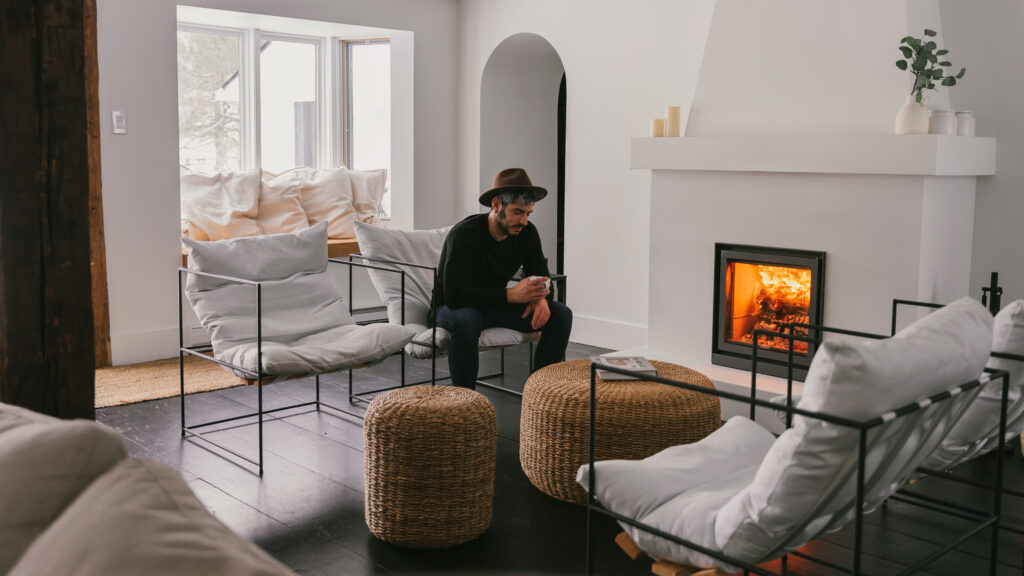

APPAREIL architecture - Félix Michaud photo - Stûv 16-68 Z

Heat up to 2 100 ft²
(72 000 BTU)

EPA Certified - Low Fine Particulate Matter Emissions

Removable handle for a sleek design

When performance enhances the fire

  • 1

    The air required for combustion comes directly from under through an outside air intake connector specially designed for the Stûv 16-in, Z and combo models.

  • 2

    Air injectors at the top of the combustion chamber allow for a second combustion of the gases this reduces the release of fine particles into the air.

  • 3

    Once the gases have burned they are evacuated through the flue pipe.

  • 4

    The sweeping air flow removes dust due to combustion from the glass providing a perfect view of the flames.

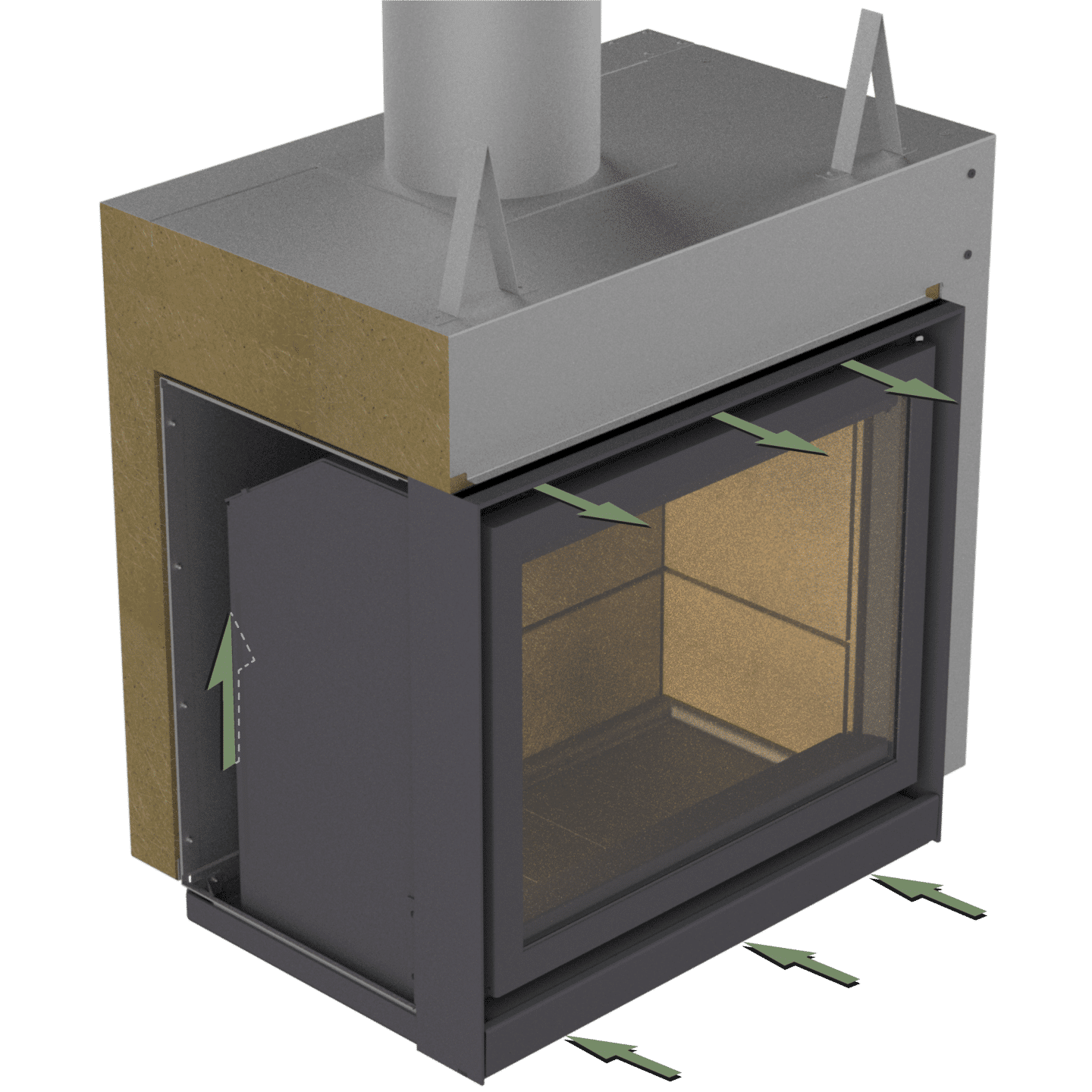

  • 5

    The air is taken from the room and heated by the unit, the convection air circulates along the combustion chamber and absorbs the heat.

  • 6

    The heated air comes out naturally from unit and distributes a comforting warmth into the room.

Exploiting simplicity

Simplicity is a key element during the creation of a unit. From aesthetics to function, installation to maintenance; every aspect is carefully thought out to eliminate the excessive in favour of the ideal.

This principle stems from a desire to manufacture timeless stoves and fireplaces that will meet the needs of several generations.

Technical documents

Stûv 16-in & Z, a large range of products offered in different sizes

Stûv 16 wood fireplaces and inserts are available in three sizes. For more information, download the technical data sheets and installation instructions.

Canada Only Models 16-78-in and Z, only available in Canada.

16-in (insert) 03
16-Z (zero clearance) 03

Model

16-58 in
16-68 in
16-78 in
EPA power

For additional information on powers, please see: https://stuvamerica.com/en/inspirations/tips-and-techniques/power-btu/

27 015 BTU/h

24 818 BTU/h

28 765 BTU/h

Maximum power

For additional information on powers, please see: https://stuvamerica.com/en/inspirations/tips-and-techniques/power-btu/

65 000 BTU/h

82 000 BTU/h

86 000 BTU/h

Nominal heat output

For additional information on powers, please see: https://stuvamerica.com/en/inspirations/tips-and-techniques/power-btu/

46 000 BTU/h

50 000 BTU/h

58 000 BTU/h

Efficiency





70,3%

61,6%

66,6%

Fine particle emissions





1.47 g/h

1.94 g/h

3.1 g/h

Heating surface area





1 400 ft2

1 650 ft2

2 100 ft2

Combustion chamber





1.6 ft3

2 ft3

2.2 ft3

Weight





180 lb

205 lb

228 lb

Model

16-58 Z
16-68 Z
16-78 Z
EPA power

For additional information on powers, please see: https://stuvamerica.com/en/inspirations/tips-and-techniques/power-btu/

27 015 BTU/h

24 818 BTU/h

28 765 BTU/h

Maximum power

For additional information on powers, please see: https://stuvamerica.com/en/inspirations/tips-and-techniques/power-btu/

65 000 BTU/h

82 000 BTU/h

86 000 BTU/h

Nominal heat output

For additional information on powers, please see: https://stuvamerica.com/en/inspirations/tips-and-techniques/power-btu/

46 000 BTU/h

50 000 BTU/h

58 000 BTU/h

Efficiency





70,3%

61,6%

66,6%

Fine particle emissions





1.47 g/h

1.94 g/h

3.1 g/h

Heating surface area





1 400 ft2

1 650 ft2

2 100 ft2

Combustion chamber





1.6 ft3

2 ft3

2.2 ft3

Weight





232 lb

261 lb

288 lb

Options

Overview of frames for Stûv 16-In & Z

The frames of Stûv 16-in and Z have been specially designed to offer a minimalist design and add an original touch to any decor.

Thin edge frame

For a sleek design, this steel frame is available in StûvGrey colour only for Stûv models 16-58, 16-68 and 16-78 in and Z.

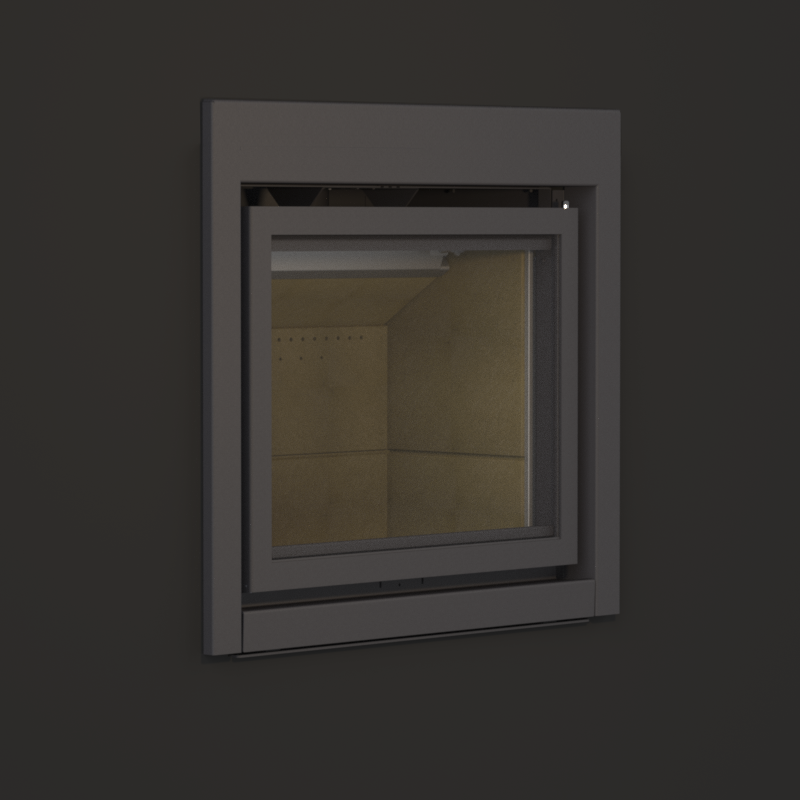

Picture type frame 2’’

This 2″ steel frame is adjustable (3/4″) and available in StûvGrey colour only. For Stûv 16-58, 16-68 and 16-78 in and Z models.

Picture typre frame 4"

This 4″ steel frame is adjustable (3/4″) and available in StûvGrey colour only. For Stûv 16-58, 16-68 and 16-78 in and Z models.

Picture type frame 6"

This 6″ steel frame is adjustable (3/4″) and available in StûvGrey colour only. For Stûv 16-58, 16-68 and 16-78 in and Z models.

Thin edge frame

For a sleek design, this steel frame is available in StûvGrey colour only for Stûv models 16-58, 16-68 and 16-78 in and Z.

Picture type frame 2’’

This 2″ steel frame is adjustable (3/4″) and available in StûvGrey colour only. For Stûv 16-58, 16-68 and 16-78 in and Z models.

Picture typre frame 4"

This 4″ steel frame is adjustable (3/4″) and available in StûvGrey colour only. For Stûv 16-58, 16-68 and 16-78 in and Z models.

Picture type frame 6"

This 6″ steel frame is adjustable (3/4″) and available in StûvGrey colour only. For Stûv 16-58, 16-68 and 16-78 in and Z models.

Finishings

Customize your Stûv 16-in & Z

Mobile log rack

The mobile log rack, available in two sizes, is the ideal solution for storing wood. It moves easily thanks to its silicone wheels.

Mobilobox

This small mobile box is not only easy to handle, but it also has an integrated storage for firewood, matches and fire starters.

Mobile log rack

The mobile log rack, available in two sizes, is the ideal solution for storing wood. It moves easily thanks to its silicone wheels.

Mobilobox

This small mobile box is not only easy to handle, but it also has an integrated storage for firewood, matches and fire starters.

Accessories

Complete your Stûv 16-in & Z

Chimney adapter Stûv 16-in, Z & combo

This 7 in. adapter allows you to enlarge the chimney diameter of your wood stove (standard 6 in.) to increase the flue pull. This accessory is strongly recommended when the length of your chimney is less than 18 feet.

pelo

Adjustable legs Stûv 16

These adjustable steel legs are perfect for quickly adjusting your device to the desired height. They can be easily and quickly installed on all Stûv 16 models. Maximum height: 24 in.

pelo

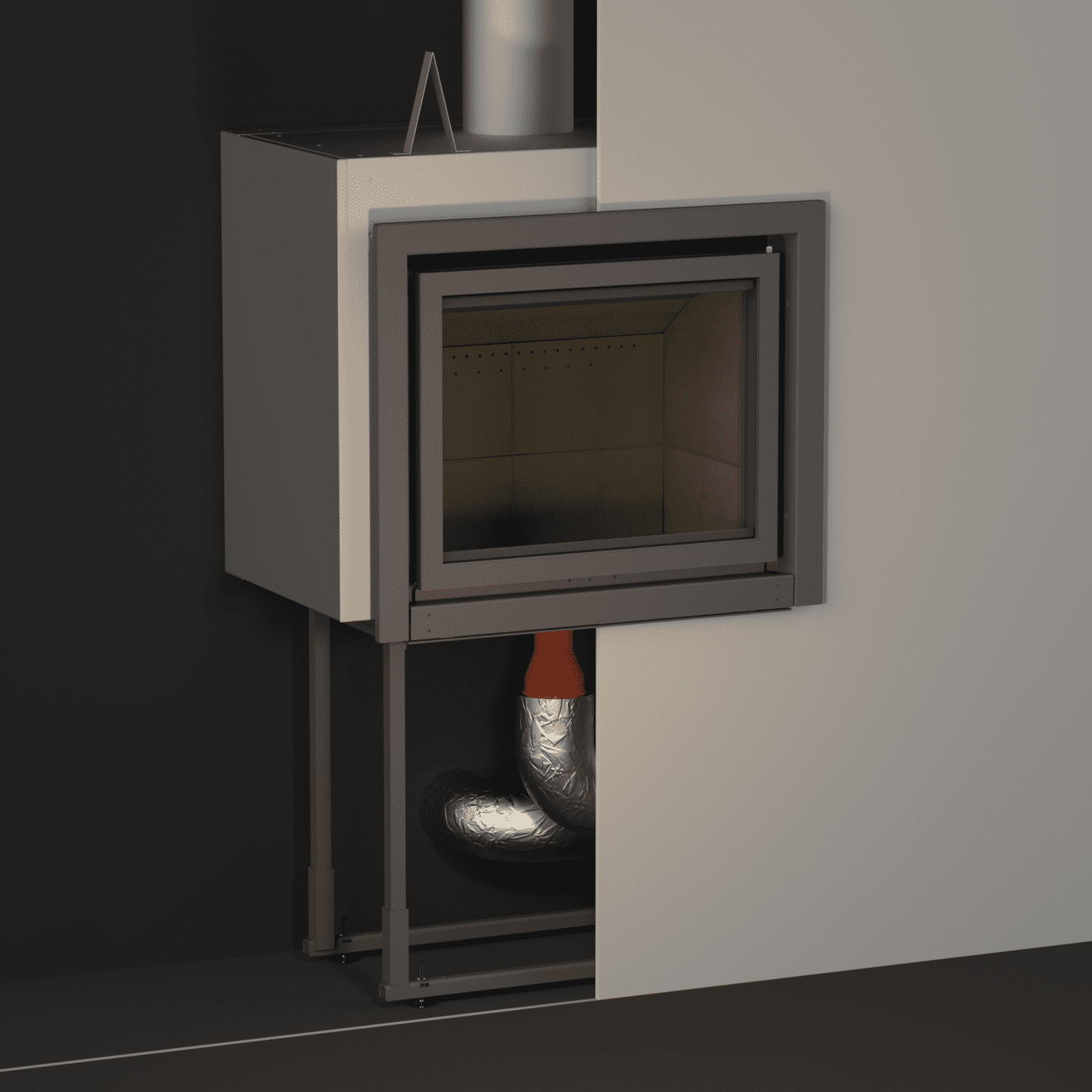

Outside air intake connector for Stûv 16-in & 16-Z

This connector allows the outside air intake from the house to be connected directly to the combustion chamber of the device.

pelo

Air damper

This damper prevents outside air from coming into the house when the unit is not in use. This accessory is strongly recommended for very airtight home standards. Available in 4 or 6 in.

pelo

Connection kit for outside air intake

This kit connects the outside air intake to the appropriate connector for each unit. It includes a 4" diameter, 12' long insulated duct and a white grill.

pelo

StûvGrey Paint

400 ml StûvGrey spray paint ideal for covering scratches and doing touch-ups or painting the flue pipe the same colour as the unit.

pelo

Chimney adapter Stûv 16-in, Z & combo

This 7 in. adapter allows you to enlarge the chimney diameter of your wood stove (standard 6 in.) to increase the flue pull. This accessory is strongly recommended when the length of your chimney is less than 18 feet.

Adjustable legs Stûv 16

These adjustable steel legs are perfect for quickly adjusting your device to the desired height. They can be easily and quickly installed on all Stûv 16 models. Maximum height: 24 in.

Outside air intake connector for Stûv 16-in & 16-Z

This connector allows the outside air intake from the house to be connected directly to the combustion chamber of the device.

Air damper

This damper prevents outside air from coming into the house when the unit is not in use. This accessory is strongly recommended for very airtight home standards. Available in 4 or 6 in.

Connection kit for outside air intake

This kit connects the outside air intake to the appropriate connector for each unit. It includes a 4" diameter, 12' long insulated duct and a white grill.

StûvGrey Paint

400 ml StûvGrey spray paint ideal for covering scratches and doing touch-ups or painting the flue pipe the same colour as the unit.
