Stûv 16

Wood stoves

Stûv 16. Clean lines. Amazing performance.

Stûv 16 showcase the spectacle of flames through their refined design. These types of modern wood stoves have a large opening that abundantly distributes heat.

Fire in its purest form with automatic control

The combustion techniques of the Stûv 16 allow to optimize their efficiency while eliminating their environmental impact. Equipped with SBR (single burn rate) automatic control, these models are easy to use: no air damper to manipulate all you need to do is light the logs and enjoy the spectacular fire.

Clean lines and elegance

With their perfectly straight lines, Stûv 16 woodstoves are timeless and suitable for every style.

A breathtaking view of the fire

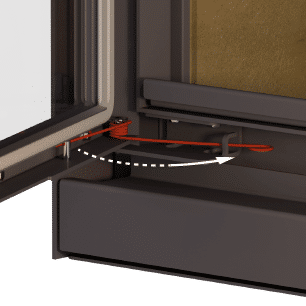

Handles are not visible on the Stûv 16. A removable key serves as a tool to open the hinged door.

Different arrangements possible

Available as a freestanding wood stove, on a podium or with an H-base with integrated log storage, the Stûv 16 stoves offer a multitude of possibilities.
V-FA Architecture, Cindy Blazevic photo - Stûv 16-68 cube with podium

Heat up to
2 100 ft² (72 000 BTU)

EPA Certified - Low Fine Particulate Matter Emissions

Removable handle for a sleek design

When performance enhances the fire

  • 1

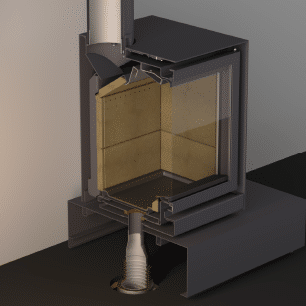

    The air required for combustion comes directly from under through an outside air intake connector specially designed for the Stûv 16-cube and H models.

  • 2

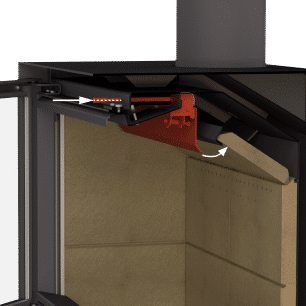

    Air injectors at the top of the combustion chamber allow for a second combustion of the gases this reduces the release of fine particules into the air.

  • 3

    Once the gases have burned they are evacuated through the flue pipe.

  • 4

    The sweeping air flow removes dust due to combustion from the glass providing a perfect view of the flames.

  • 5

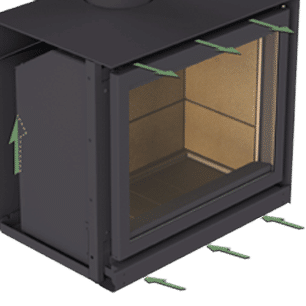

    The air is taken from the room and heated by the unit, the convection air circulates along the combustion chamber and absorbs the heat.

  • 6

    The heated air comes out naturally from unit and distributes a comforting warmth into the room.

Features are concealed

Handles or convection grills are not visible on the Stûv 16s. A removable key serves as a tool to open the hinged door. The heat is released into the room via an opening located between the combustion chamber and the envelope of the wood stove. Behind these characteristics, ingenious mechanisms to ensure the proper operation of the device.

Stûv goes to great lengths to conceal the features of its devices to enhance your experience.

Technical documents

Stûv 16, a large family in every size

Stûv 16 wood stoves are available in three sizes. For more information, download the technical data sheets and installation instructions.



Canada Only Models 16-78 cube and H, only available in Canada.

16-cube 03
16-H (firewood storage) 03

Model

16-58 cube
16-68 cube
16-78 cube
EPA power

For additional information on powers, please see: https://stuvamerica.com/en/inspirations/tips-and-techniques/power-btu/

27 015 BTU/h

24 818 BTU/h

28 765 BTU/h

Maximum power

For additional information on powers, please see: https://stuvamerica.com/en/inspirations/tips-and-techniques/power-btu/

65 000 BTU/h

82 000 BTU/h

86 000 BTU/h

Nominal heat output

For additional information on powers, please see: https://stuvamerica.com/en/inspirations/tips-and-techniques/power-btu/

46 000 BTU/h

50 000 BTU/h

58 000 BTU/h

Efficiency

The energy efficiency or performance of a unit corresponds to the energy it releases compared to the energy it consumes. The higher the performance, the more efficient, economical and environmentally friendly the heating is.

70,3%

61,6%

66,6%

Fine particle emissions

When wood burns, it gives off smoke consisting of a mixture of gases and microscopic solid wood particles. This data indicates the per hour quantity of solid particles released by a device.

1.47 g/h

1.94 g/h

3.1 g/h

Heating surface area

The heating surface area indicates the number of square feet that a unit can heat. However, the height of the ceilings, the number of storeys, the shape and quality of the insulation in a house can have an impact on the heating area indicated for each model.

1 400 ft2

1 650 ft2

2 100 ft2

Combustion chamber

This technical feature is used as a comparison to illustrate the loading capacity of a model. All Stûvs models offer full use of the combustion chamber and have been designed to accommodate standard 16″ logs and more.

1.6 ft3

2 ft3

2.2 ft3

Weight

The weight of an appliance is something you should consider for your project since you may need to have a professional confirm that the structure is strong enough to support the chosen model.

250 lb

272 lb

300 lb

Model

16-58 H
16-68 H
16-78 H
EPA power

For additional information on powers, please see: https://stuvamerica.com/en/inspirations/tips-and-techniques/power-btu/

27 015 BTU/h

24 818 BTU/h

28 765 BTU/h

Maximum power

For additional information on powers, please see: https://stuvamerica.com/en/inspirations/tips-and-techniques/power-btu/

65 000 BTU/h

82 000 BTU/h

86 000 BTU/h

Nominal heat output

For additional information on powers, please see: https://stuvamerica.com/en/inspirations/tips-and-techniques/power-btu/

46 000 BTU/h

50 000 BTU/h

58 000 BTU/h

Efficiency

The energy efficiency or performance of a unit corresponds to the energy it releases compared to the energy it consumes. The higher the performance, the more efficient, economical and environmentally friendly the heating is.

70,3%

61,6%

66,6%

Fine particle emissions

When wood burns, it gives off smoke consisting of a mixture of gases and microscopic solid wood particles. This data indicates the per hour quantity of solid particles released by a device.

1.47 g/h

1.94 g/h

3.1 g/h

Heating surface area

The heating surface area indicates the number of square feet that a unit can heat. However, the height of the ceilings, the number of storeys, the shape and quality of the insulation in a house can have an impact on the heating area indicated for each model.

1 400 ft2

1 650 ft2

2 100 ft2

Combustion chamber

This technical feature is used as a comparison to illustrate the loading capacity of a model. All Stûvs models offer full use of the combustion chamber and have been designed to accommodate standard 16″ logs and more.

1.6 ft3

2 ft3

2.2 ft3

Weight

The weight of an appliance is something you should consider for your project since you may need to have a professional confirm that the structure is strong enough to support the chosen model.

332 lb

362 lb

396 lb

Finishings

Customize your Stûv 16

Stûv 16 podium set

This set consists of a podium to place the appliance on, a smaller podium with a drawer and a mobile log rack also with a drawer to store matches and other accessories. Offered separately, the Stûv 16 podium set allows you to create the layout that best suits each project. Available in white RAL 9010 and StûvGrey.

Mobile log rack

The mobile log rack, available in two sizes, is the ideal solution for storing wood. It moves easily thanks to its silicone wheels.

Mobilobox

This small mobile box is not only easy to handle, but it also has an integrated storage for firewood, matches and fire starters.

Stûv 16 podium set

This set consists of a podium to place the appliance on, a smaller podium with a drawer and a mobile log rack also with a drawer to store matches and other accessories. Offered separately, the Stûv 16 podium set allows you to create the layout that best suits each project. Available in white RAL 9010 and StûvGrey.

Mobile log rack

The mobile log rack, available in two sizes, is the ideal solution for storing wood. It moves easily thanks to its silicone wheels.

Mobilobox

This small mobile box is not only easy to handle, but it also has an integrated storage for firewood, matches and fire starters.

Accessories

Complete your Stûv 16

Chimney adapter

This 7 in. adapter allows you to enlarge the chimney diameter of your wood stove (standard 6 in.) to increase the flue pull. This accessory is strongly recommended when the length of your chimney is less than 18 feet.

pelo

Outside air intake connector for Stûv 16-cube

This connector allows the outside air intake from the house to be connected directly to the combustion chamber of the wood stove.

pelo

Outside air intake connector for Stûv 16-H

This connector allows the outside air intake from the house to be connected directly to the combustion chamber of the wood stove. Its design is perfectly adapted to be installed at the H-base of the Stûv 16 without affecting the aesthetics of the unit.

pelo

Air damper

This damper prevents outside air from coming into the house when the unit is not in use. This accessory is strongly recommended for very airtight home standards. Available in 4 or 6 in.

pelo

Connection kit for outside air intake

This kit connects the outside air intake to the appropriate connector for each unit. It includes a 4" diameter, 12' long insulated duct and a white grill.

pelo

StûvGrey Paint

400 ml StûvGrey spray paint ideal for covering scratches and doing touch-ups or painting the flue pipe the same colour as the unit.

pelo

Chimney adapter

This 7 in. adapter allows you to enlarge the chimney diameter of your wood stove (standard 6 in.) to increase the flue pull. This accessory is strongly recommended when the length of your chimney is less than 18 feet.

Outside air intake connector for Stûv 16-cube

This connector allows the outside air intake from the house to be connected directly to the combustion chamber of the wood stove.

Outside air intake connector for Stûv 16-H

This connector allows the outside air intake from the house to be connected directly to the combustion chamber of the wood stove. Its design is perfectly adapted to be installed at the H-base of the Stûv 16 without affecting the aesthetics of the unit.

Air damper

This damper prevents outside air from coming into the house when the unit is not in use. This accessory is strongly recommended for very airtight home standards. Available in 4 or 6 in.

Connection kit for outside air intake

This kit connects the outside air intake to the appropriate connector for each unit. It includes a 4" diameter, 12' long insulated duct and a white grill.

StûvGrey Paint

400 ml StûvGrey spray paint ideal for covering scratches and doing touch-ups or painting the flue pipe the same colour as the unit.
