Stûv 6-in

Wood fireplaces and inserts

Stûv 6, innovation through design & experience.

The Stûv 6-in is a wood-burning insert suited to small spaces while offering a generous view of the fire. It is perfect for masonry hearths and for wood-fire enthusiasts.

The fire at the front line

Stûv 6-in units offer a breathtaking view of the fire. The combustion chamber widens toward the front to reach the streamlined door frame. This shape, unique to Stûv 6-in, has made it possible to reduce the insert dimensions while making the fire the focus.

Ingenuity in all its details

Pat.D898,173 - Unique for its ease of installation as an insert and its broad view of the fire, the Stûv 6 has a patented design that promises a truly authentic experience. From installation to use, every detail is optimized to simplify the user's interaction with the appliance and make the most of every advantage a wood fire offers.

Automatic control mode

The Stûv 6-in’s air intake is factory-configured to perfectly calibrate the amount of air in the combustion chamber for optimal performance. Gone are the days of having to constantly adjust the damper to increase or decrease the air supply in the combustion chamber. With Stûv 6-in, simply light the fire, sit back and enjoy.

Heating power adapted to the smallest spaces

The Stûv 6-in is a wood-burning insert perfectly suited to the smaller hearths of yesteryear while meeting today's needs, in homes that are better insulated and already have a main heating system. Stûv 6-in produces a gentle, pleasant warmth for ultimate comfort.
Picture François Chevalier | Stûv 6-in 76x55

Heat up to
1 000 ft2 - 23 388 BTU/h (EPA)

Low Fine Particulate Matter Emissions

Integrated handle for a clean design

When performance enhances the fire

  • 1

    The air required for combustion can either be taken from the room via the front of the appliance or from an outside air intake.

  • 2

    The air injected at the top of the combustion chamber allows the gases to be burned a second time, preventing fine particles from being released into the air.

  • 3

    Once the gases are burned, they are evacuated through the flue.

  • 4

    Air flow along the glass helps keep it clean while increasing the insert’s efficiency.

  • 5

    The ambient air gathered from the room through the front of the appliance moves along the combustion chamber, absorbing heat.

  • 6

    Once heated, this air exits naturally through the appliance's upper frame, spreading comforting warmth through the room.

Creating air flow naturally

The Stûv 6 owes its name to the distinctive shape of its inner profile. Stûv designers searched for the most efficient shape to optimize airflow through natural ventilation. Concealing the technical complexities, the result is a signature shape everyone recognizes : the 6.

Technical documents

Stûv 6-in, a new growing family – New models to come

Stûv 6-in models are inserts offered in an ideal format for small spaces. For more information, download the technical data sheets and installation instructions.

6 03

Model

66x50
76x55
76x60
Color

Black

Black

Black

EPA power

For additional information on powers, please see: https://stuvamerica.com/en/inspirations/tips-and-techniques/power-btu/

17 121 BTU/h

21 732 BTU/h

23 388 BTU/h

Maximum power

For additional information on powers, please see: https://stuvamerica.com/en/inspirations/tips-and-techniques/power-btu/

49 000 BTU/h

58 000 BTU/h

64 000 BTU/h

Nominal heat output

For additional information on powers, please see: https://stuvamerica.com/en/inspirations/tips-and-techniques/power-btu/

34 000 BTU/h

39 000 BTU/h

44 000 BTU/h

Efficiency

The energy efficiency or performance of a unit corresponds to the energy it releases compared to the energy it consumes. The higher the performance, the more efficient, economical and environmentally friendly the heating is.

68,4%

67,6%

68.3%

Fine particle emissions

When wood burns, it gives off smoke consisting of a mixture of gases and microscopic solid wood particles. This data indicates the per hour quantity of solid particles released by a device.

1.93 g/h

1.86 g/h

1.89 g/h

Heating surface area

The heating surface area indicates the number of square feet that a unit can heat. However, the height of the ceilings, the number of storeys, the shape and quality of the insulation in a house can have an impact on the heating area indicated for each model.

1 000 ft2

1 300 ft2

1 400 ft2

Combustion chamber

This technical feature is used as a comparison to illustrate the loading capacity of a model. All Stûvs models offer full use of the combustion chamber and have been designed to accommodate standard 16″ logs and more.

1.08 ft3

1.55 ft3

1.58 ft3

Weight

The weight of an appliance is something you should consider for your project since you may need to have a professional confirm that the structure is strong enough to support the chosen model.

165 lb

190 lb

200 lb

Technical documents

Options

Overview of frames for Stûv 6-in

Stûv 6-in frames offer a sleek design to complete the decor.

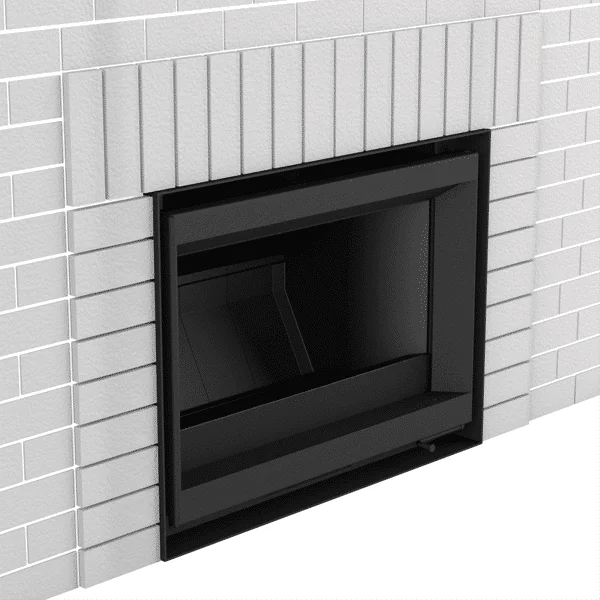

Thin Edge Frame - Stûv 6

This steel frame offers clean lines for a refined look.

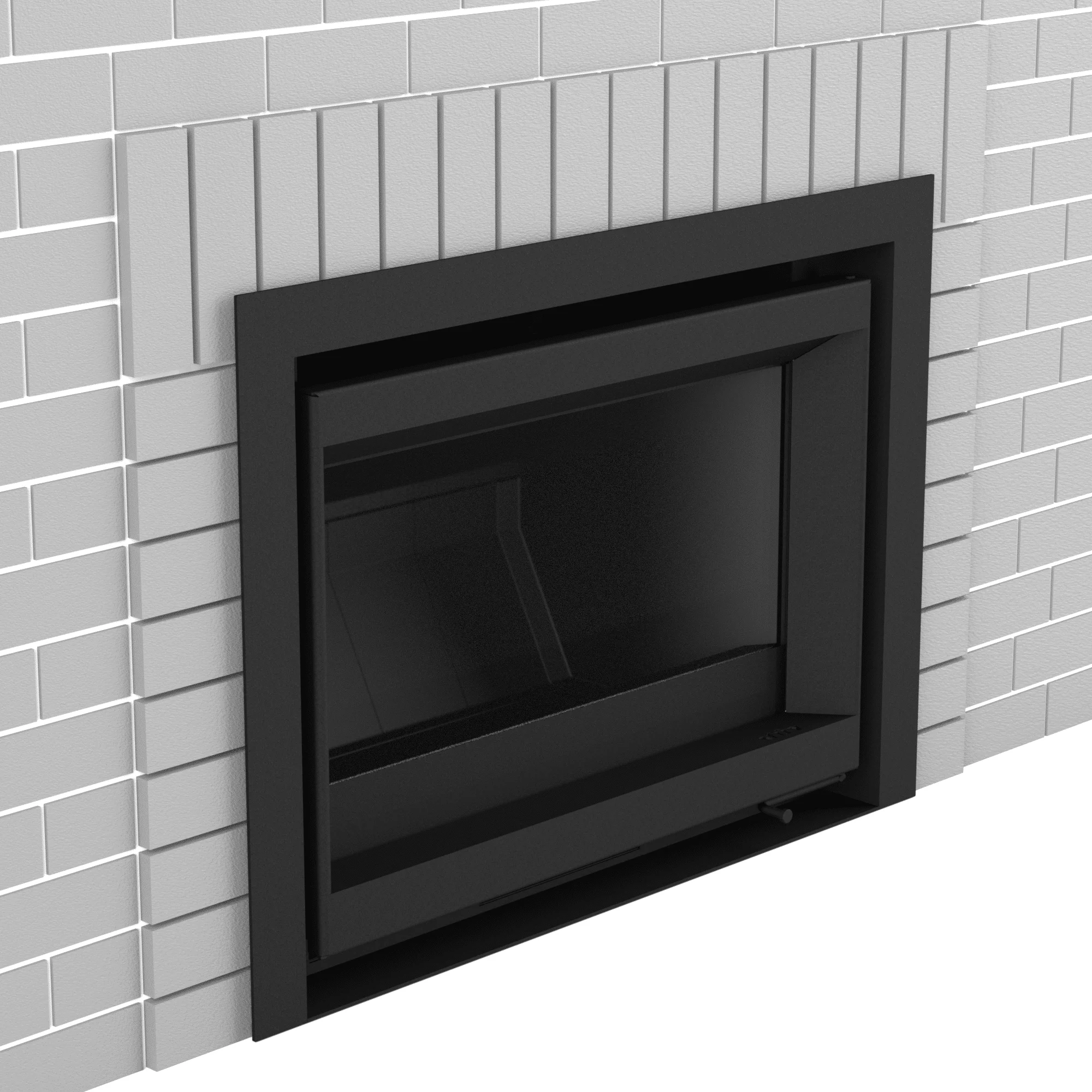

2" Picture Type Frame

This 2 ”steel frame ensures a proper finish all around the unit. Available in black only.

4" Picture Type Frame

This black 4″ steel frame is ideal for large masonry hearths as it creates a beautiful finish all around the unit.

6" Picture Type Frame

This black 6″ steel frame creates an impeccable finish for units installed in very large masonry hearths.

Thin Edge Frame - Stûv 6

This steel frame offers clean lines for a refined look.

2" Picture Type Frame

This 2 ”steel frame ensures a proper finish all around the unit. Available in black only.

4" Picture Type Frame

This black 4″ steel frame is ideal for large masonry hearths as it creates a beautiful finish all around the unit.

6" Picture Type Frame

This black 6″ steel frame creates an impeccable finish for units installed in very large masonry hearths.

Finishings

Customize your Stûv 6-in

Mobile log rack

The mobile log rack, available in two sizes, is the ideal solution for storing wood. It moves easily thanks to its silicone wheels.

Mobilobox

This small mobile box is not only easy to handle, but it also has an integrated storage for firewood, matches and fire starters.

Mobile log rack

The mobile log rack, available in two sizes, is the ideal solution for storing wood. It moves easily thanks to its silicone wheels.

Mobilobox

This small mobile box is not only easy to handle, but it also has an integrated storage for firewood, matches and fire starters.

Accessories

Complete your Stûv 6-in

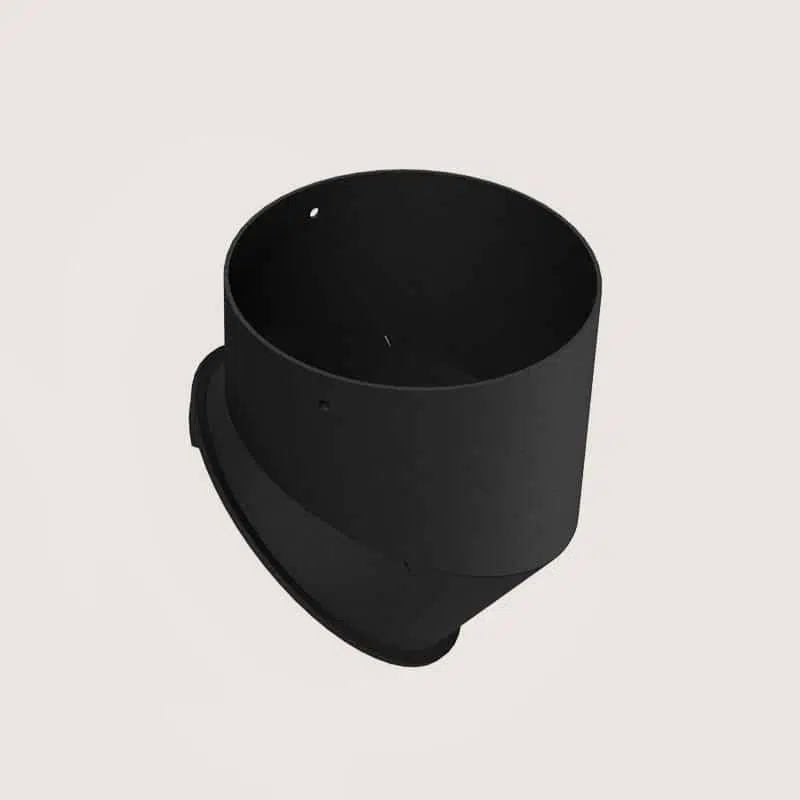

Smoke Outlet - VERTICAL

This outlet provides straight-line evacuation of the smoke to the outside. It is available in 6ʺ format.

pelo

Smoke Outlet - ANGLED

This outlet provides angled evacuation of the smoke to the outside. It is available in 6ʺ format.

pelo

Outside air intake connector - UNDER THE UNIT

This connector allows the outside air intake from the house to be connected directly to the combustion chamber. Its design is perfectly adapted to be installed below the unit.

pelo

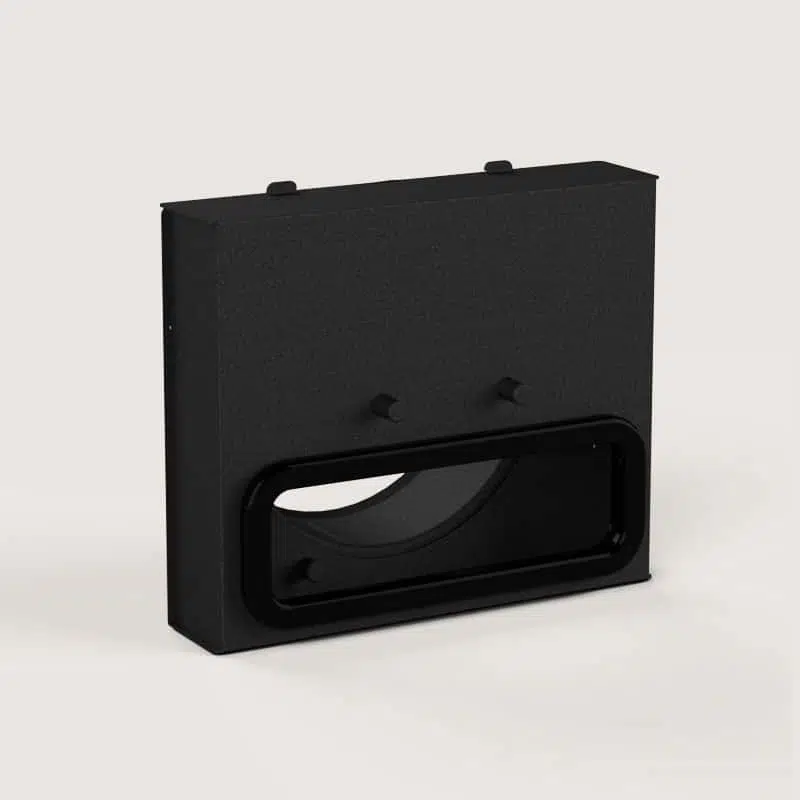

Outside air intake connector - REAR

This accessory makes it possible to connect the outside air intake directly to the combustion chamber. It is designed to be installed at the back of the unit.

pelo

4" air damper

This airtight damper prevents outside air from coming into the house when the unit is not in use. This accessory is strongly recommended for homes with very high airtightness standards.

pelo

Connection kit for outside air intake

This kit connects the outside air intake to the appropriate connector for each unit. It includes a 4" diameter, 12' long insulated duct and a white grill.

pelo

Smoke Outlet - VERTICAL

This outlet provides straight-line evacuation of the smoke to the outside. It is available in 6ʺ format.

Smoke Outlet - ANGLED

This outlet provides angled evacuation of the smoke to the outside. It is available in 6ʺ format.

Outside air intake connector - UNDER THE UNIT

This connector allows the outside air intake from the house to be connected directly to the combustion chamber. Its design is perfectly adapted to be installed below the unit.

Outside air intake connector - REAR

This accessory makes it possible to connect the outside air intake directly to the combustion chamber. It is designed to be installed at the back of the unit.

4" air damper

This airtight damper prevents outside air from coming into the house when the unit is not in use. This accessory is strongly recommended for homes with very high airtightness standards.

Connection kit for outside air intake

This kit connects the outside air intake to the appropriate connector for each unit. It includes a 4" diameter, 12' long insulated duct and a white grill.
